Marley Anglia Single Pantile Concrete Tiles

Marley Anglia Single Pantile Concrete Tiles

Marley Anglia Single Pantile is a single-lap interlocking concrete tile with the classic clay pantiles profile and bullnosed leading edge design. It has a popular profile complemented by traditional colours, for a selection suitable to all varieties of development.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking tiles and slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Has the characteristic profile of traditional clay pantiles
  • Bullnose leading edge design
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified Excellent for BES 6001

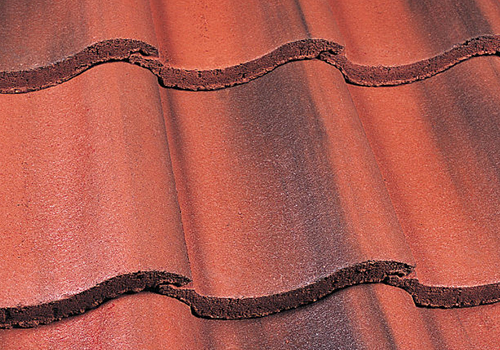

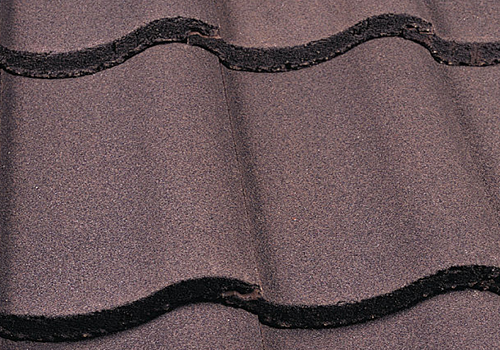

Colours Available – Antique Brown / Old English Dark Red

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

Marley Anglia Single Pantile is a single-lap interlocking concrete tile with the classic clay pantiles profile and bullnosed leading edge design. It has a popular profile complemented by traditional colours, for a selection suitable to all varieties of development.

All of Marley’s concrete interlocking tiles can achieve an ‘A+’ rating (which has the lowest environmental impact) in the Building Research Establishment’s Green Guide to Specification.

Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using these concrete interlocking tiles and slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

Features & Benefits:

  • Has the characteristic profile of traditional clay pantiles
  • Bullnose leading edge design
  • Can achieve an A+ rating in the BRE Green Guide to Specification
  • Certified Excellent for BES 6001

Colours Available – Antique Brown / Old English Dark Red

Additional information

Size

387mm x 230mm

Minimum Pitch

30° Smooth (75mm headlap)
30° Granular (75mm headlap)
25° Smooth (100mm headlap)

Maximum Pitch

90°

Minimum Headlap

75mm

Maximum Gauge

312mm

Cover Width

204mm (nominal)

Covering Capacity

15.7 tiles /m² at 75mm headlap
17.1 tiles /m² at 100mm headlap

Weight of Tiling

47kg/m² (0.46 Kn/m²) at 75mm headlap
51kg/m² (0.50 Kn/m²) at 100mm headlap

Battens Required

3.2 lin.m/m² at 75mm headlap
3.5 lin.m/m² at 100mm headlap

Tile Nails

38.33 x 3.35mm

Hanging Length

370mm (nominal)

Material

Concrete

Colour

Antique Brown / Old English Dark Red
