Metal Trims

Metal Trims

Tamlyn’s extruded aluminium trim profiles are available to match multiple panel siding systems and are ideal for use with both the Cembrit and Teckwood composite cladding products. There are many design and colour options possible, allowing architects and users to dramatically improve their building aesthetics and create modern architectural lines.

Tamlyn’s extruded aluminium trim profiles are manufactured from 6063-T6 .050” ± .005 aluminium alloy with a proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

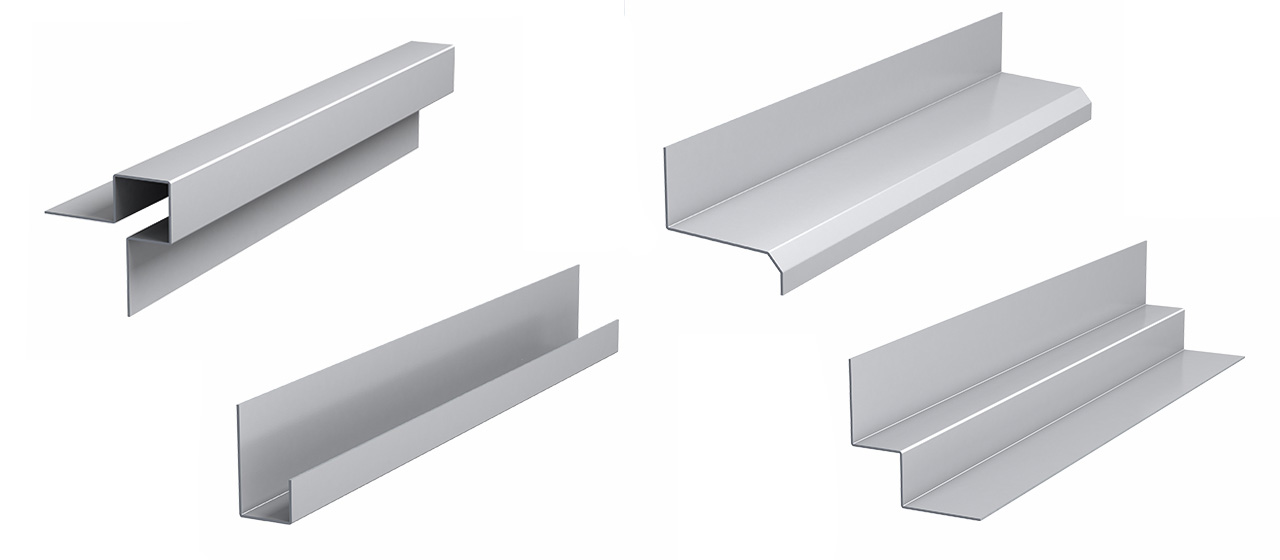

Metal Trim Profile Range:

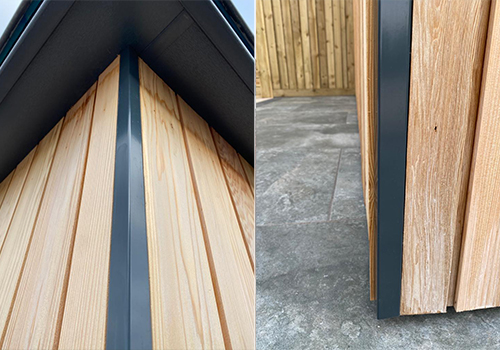

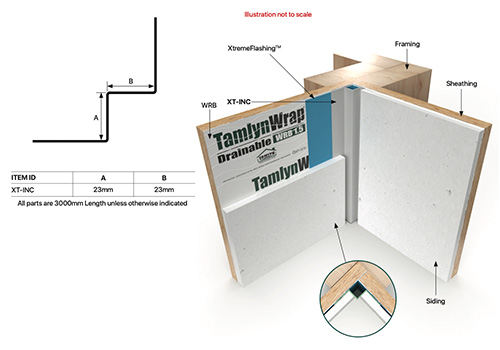

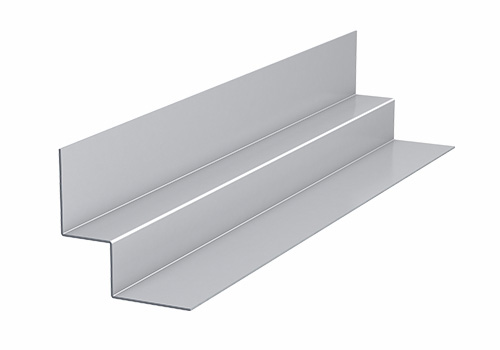

Internal Corner: Design authentically duplicates the look of a wood corner piece without the maintenance headaches. Eliminates wood inside corner piece that will split/rot over time.

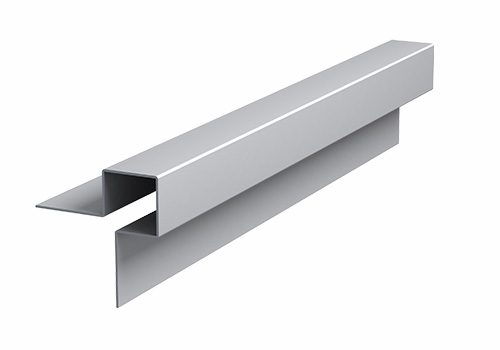

External Corner: Superior choice for use in mixed material applications. Gives a solid appearance and a versatile corner application that can be used with any vertical profiles.

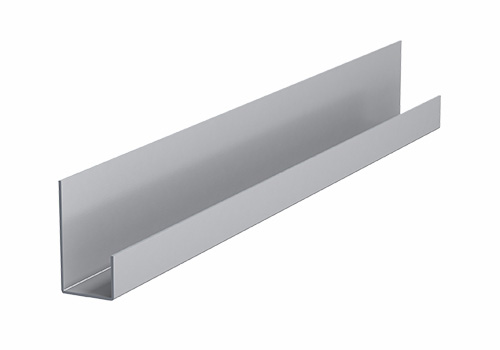

End Profile: Provides a clean finish at openings, edges of panels or planks and at material transitions. Specifically designed to work in conjunction with other XtremeTrim® profiles.

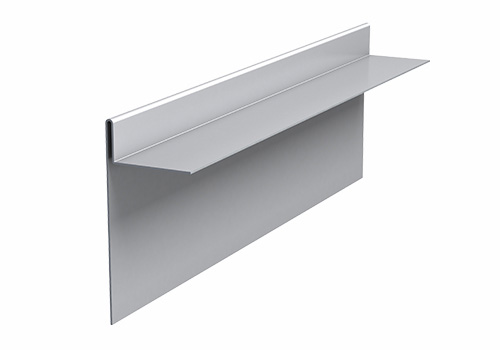

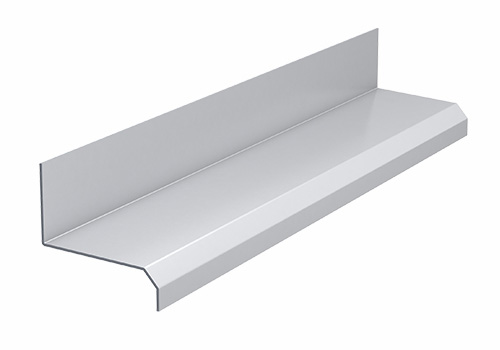

Window / Head Flashing: Provides an easy to install and long-lasting method of minimising water penetration. Used over window trim, band boards, panel intersections, and other horizontal transitions.

Colours Available – We have a full range of colours available to match Cembrit Plank.

Tamlyn Logo

Category:

Description

Tamlyn’s extruded aluminium trim profiles are available to match multiple panel siding systems and are ideal for use with both the Cembrit and Teckwood composite cladding products. There are many design and colour options possible, allowing architects and users to dramatically improve their building aesthetics and create modern architectural lines.

Tamlyn’s extruded aluminium trim profiles are manufactured from 6063-T6 .050” ± .005 aluminium alloy with a proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

Metal Trim Profile Range:

Internal Corner: Design authentically duplicates the look of a wood corner piece without the maintenance headaches. Eliminates wood inside corner piece that will split/rot over time.

External Corner: Superior choice for use in mixed material applications. Gives a solid appearance and a versatile corner application that can be used with any vertical profiles.

End Profile: Provides a clean finish at openings, edges of panels or planks and at material transitions. Specifically designed to work in conjunction with other XtremeTrim® profiles.

Window / Head Flashing: Provides an easy to install and long-lasting method of minimising water penetration. Used over window trim, band boards, panel intersections, and other horizontal transitions.

Colours Available – We have a full range of colours available to match Cembrit Plank.

Tamlyn Logo

Additional information

Product Type

Extruded aluminium trim profiles are manufactured from 6063-T6 .050” ± .005 aluminium alloy with a proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

Length

All parts are 3000mm Length unless otherwise indicated.

Internal Corner Details

Please refer to image above for specific dimensions of this profile.

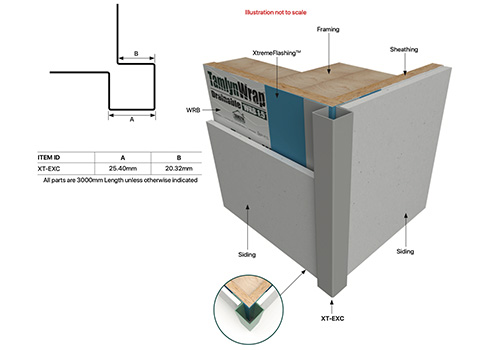

External Corner Details

Please refer to image above for specific dimensions of this profile.

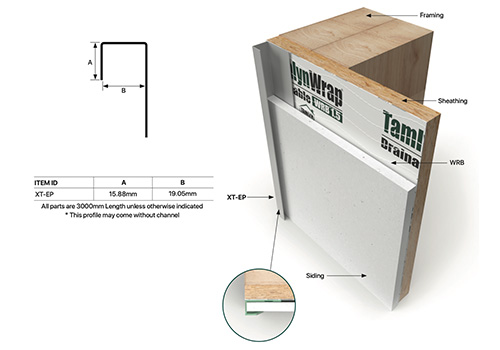

End Profile Details

Please refer to image above for specific dimensions of this profile.
Do not install the End Profile on horizontal applications where the exterior flange can catch water.
NB: This profile may come without channel.

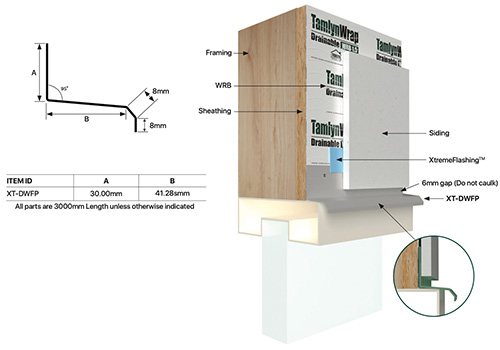

Window / Head Flashing Details

Please refer to image above for specific dimensions of this profile.
Do not install the Window Flashing on horizontal applications where the exterior flange can catch water.

Colours

Full range of colours available to match Cembrit Plank composite cladding products.
