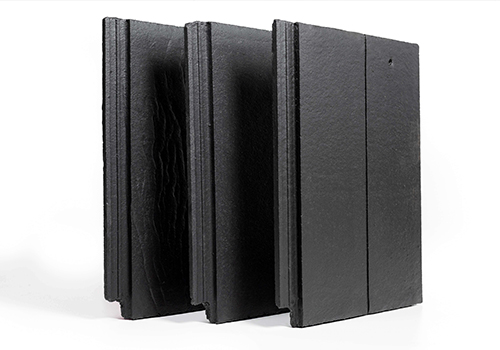

Marley Edgemere Concrete Tiles

Marley Edgemere Concrete Tiles

With a thin leading edge, Edgemere Interlocking Concrete Slates offer the appearance of natural slate, at a fraction of the cost. An ever-popular range, now available in colours that complement the sleek aesthetics of the slate, for any roofing development.

With its leading edge of only 18mm, the Edgemere has been precision-engineered to be 40% thinner than standard concrete interlocking tiles. Its large format coupled with a broken-bond laying technique make it ideal for quick and easy installation, saving you time and money, and it is versatile enough to be used on pitches as low as 17.5°. The Edgemere slate has been designed to integrate seamlessly with Marley’s dry fix and ventilation systems into a full holistic roof system, ensuring complete protection from the elements and full compliance with BS 5534. The product is BES 6001 accredited and can achieve extra credits under BREEAM and HQM. As a roof covering, these tiles have a very low carbon footprint and environmental impact and can score an A+ rating in the BRE Green Guide.

Features & Benefits:

  • 40% thinner than standard interlocking tiles
  • Broken-bond laying technique
  • Exceptional covering capacity – 9.7 tiles per m²
  • Offers an affordable alternative to natural slate
  • Can achieve an A+ rating in the BRE Green Guide
  • Certified ‘excellent’ for BES 6001

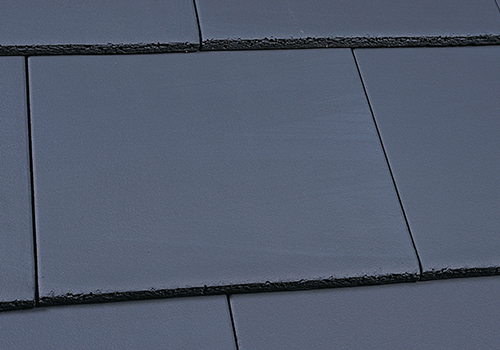

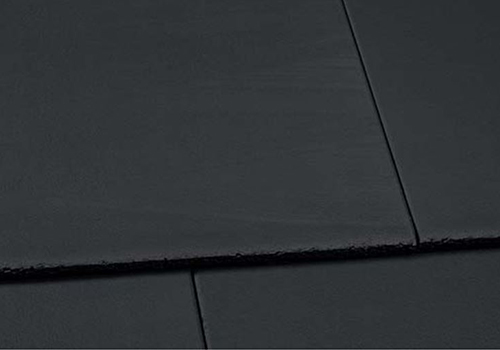

Colours Available – Anthracite / Smooth Grey

Please see Description below for full product details.

Marley Tiles - Roofstore

Description

With a thin leading edge, Edgemere Interlocking Concrete Slates offer the appearance of natural slate, at a fraction of the cost. An ever-popular range, now available in colours that complement the sleek aesthetics of the slate, for any roofing development.

With its leading edge of only 18mm, the Edgemere has been precision-engineered to be 40% thinner than standard concrete interlocking tiles. Its large format coupled with a broken-bond laying technique make it ideal for quick and easy installation, saving you time and money, and it is versatile enough to be used on pitches as low as 17.5°. The Edgemere slate has been designed to integrate seamlessly with Marley’s dry fix and ventilation systems into a full holistic roof system, ensuring complete protection from the elements and full compliance with BS 5534. The product is BES 6001 accredited and can achieve extra credits under BREEAM and HQM. As a roof covering, these tiles have a very low carbon footprint and environmental impact and can score an A+ rating in the BRE Green Guide.

Features & Benefits:

  • 40% thinner than standard interlocking tiles
  • Broken-bond laying technique
  • Exceptional covering capacity – 9.7 tiles per m²
  • Offers an affordable alternative to natural slate
  • Can achieve an A+ rating in the BRE Green Guide
  • Certified ‘excellent’ for BES 6001

Colours Available – Anthracite / Smooth Grey

Additional information

Size

420mm x 330mm

Minimum Pitch

22.5° Smooth (75mm headlap)
17.5° Smooth (100mm headlap)

Maximum Pitch

90°

Minimum Headlap

75mm (22.5°and above)
100mm (below 22.5°)

Maximum Gauge

345mm

Cover Width

295mm (nominal)

Covering Capacity

9.7 tiles /m² at 75mm headlap
10.4 tiles /m² at 100mm headlap

Weight of Tiling

44kg/m² (0.43kN/m²) at 75mm headlap
47.5kg/m² (0.47kN/m²) at 100mm headlap

Battens Required

2.9 lin.m/m² at 75mm headlap
3.1 lin.m/m² at 100mm headlap

Tile Nails

45mm x 3.35mm

Hanging Length

395mm (nominal)

Fixing Clips

Eaves, verge and slate clips

Authority

BS EN 490

Material

Concrete

Colour

Anthracite / Smooth Grey
