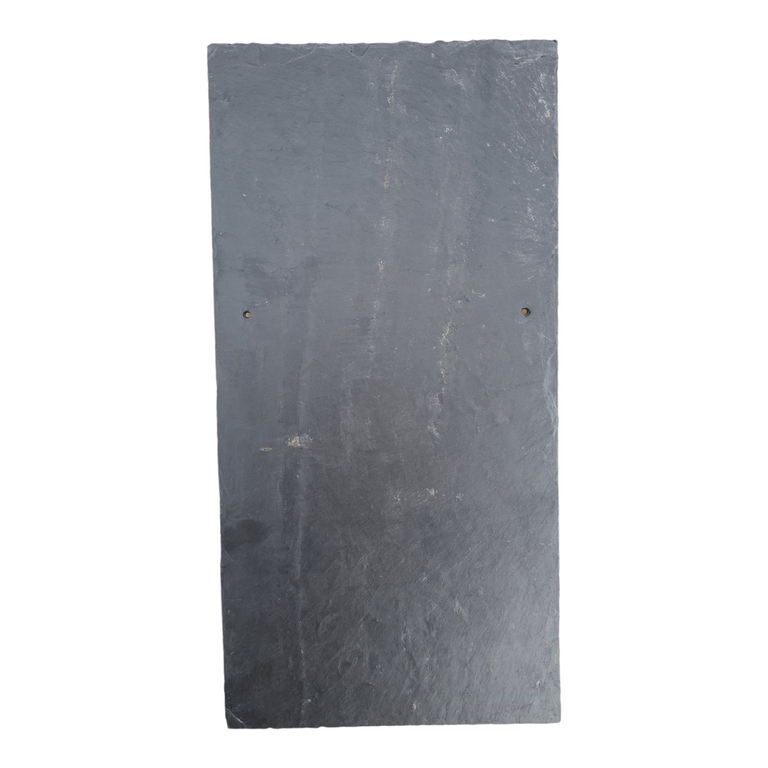

CUPA H9 500mm x 250mm Spanish Slate

Size:
£2.34
Quantity



Please note that due to ongoing shortages we reserve the right to cancel and issue refunds on any purchase for Slate & Half without a quantity of standard slate.

  • Spec

  • Installation

  • Calculator

  • Sample Request

Thickness: 5-6mm

Width: 250mm

Length: 500mm

Colour: Dark Grey

Minimum Pitch: 27.5° - Isle Of Wight Counts as a severe exposure area

Slates Per Mtr2: 20

Headlap: 110mm(if at below 30°) 100mm (If above 30°)

Batten Gauge: 195mm @ 110mm Headlap - 250mm @ 100mm Headlap

Country Of Origin: Spain

Download Data Sheet

Spanish slate is normally laid with copper or Aluminum nails (30/32mm x 3.00/3.35mm) but can also be laid with slate hooks.

Please note that slate hooks cannot be used on roofs below 30°. Roofs lower than this but not exceeding minimum pitch for the slate must be nailed.
Spanish slate can be cut with an angle grinder by ideally should be cut with either a hand held/electric slate cutter or guillotine to preserve the dressed edge on the slate cuts.

How Many Do I Need?

Request Sample Here
