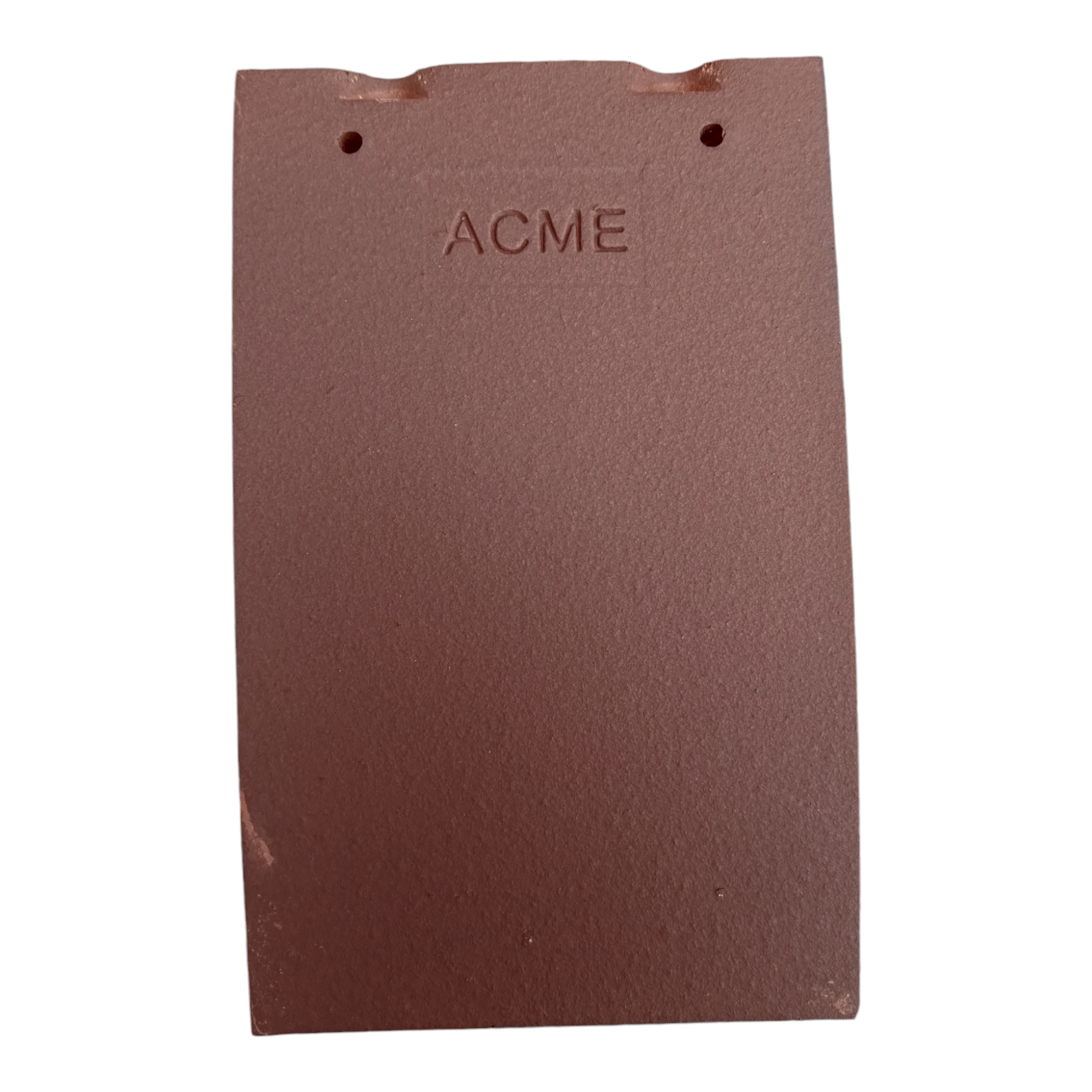

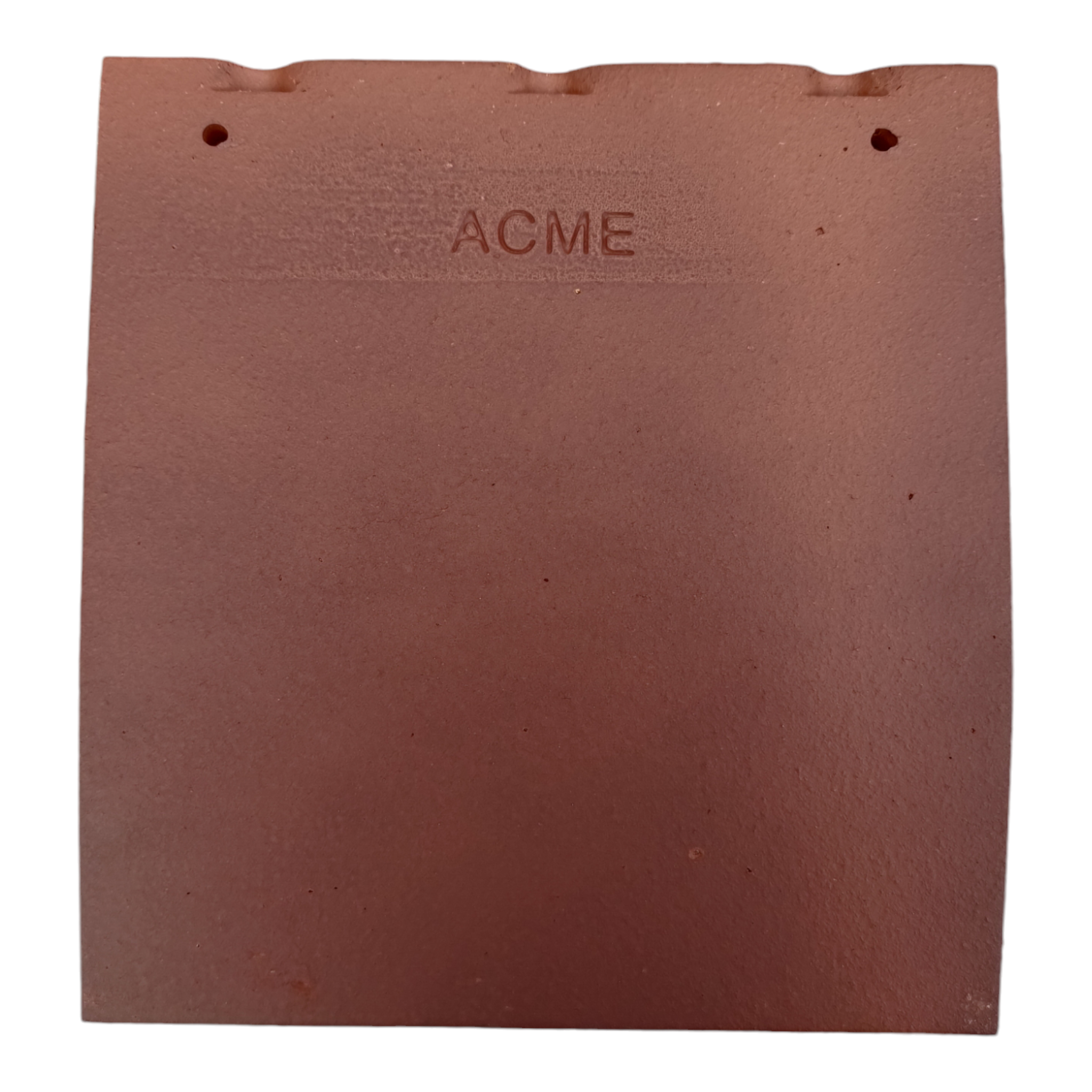

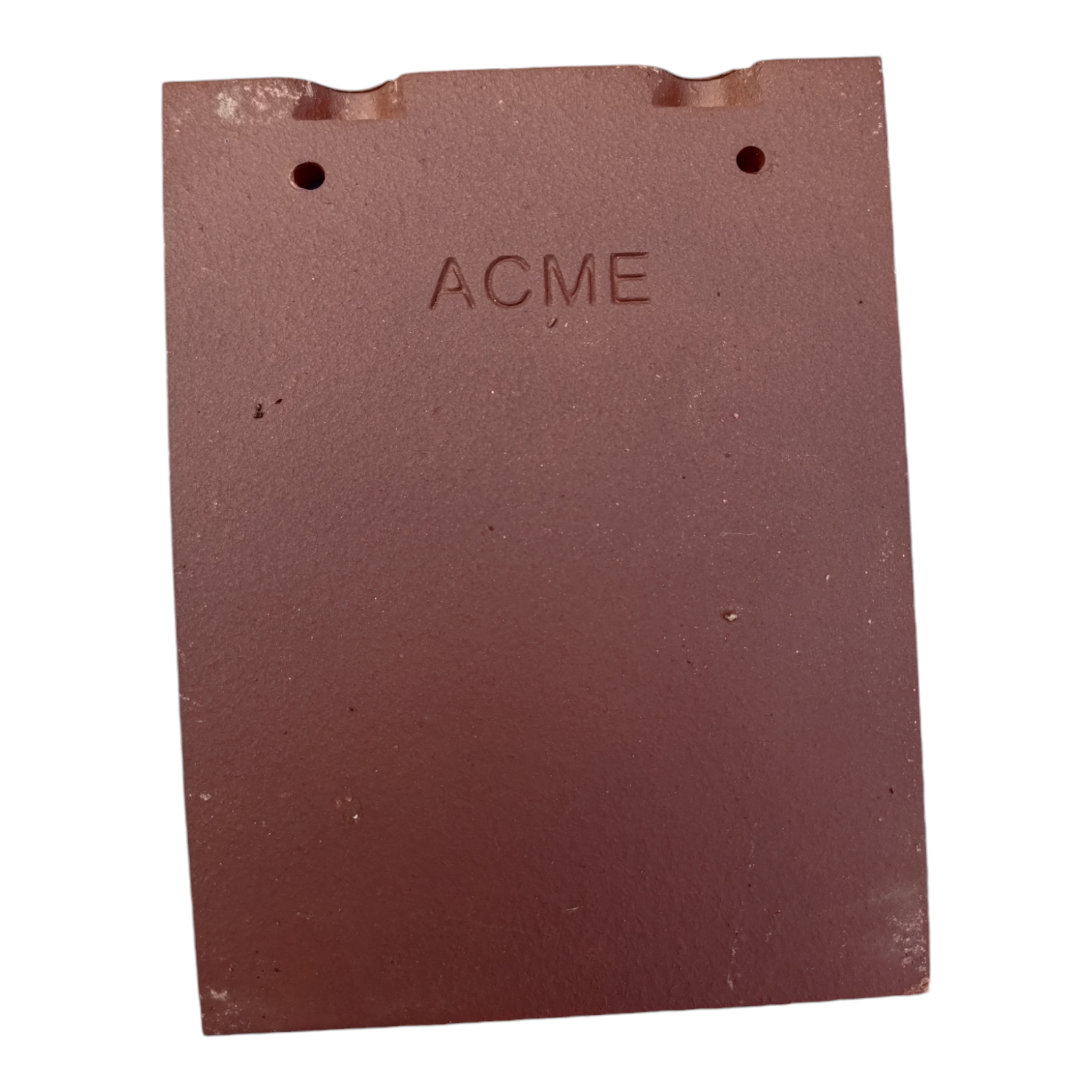

The Acme single camber clay plain tile allows the creation of traditional and contemporary low pitch roof designs with the warmth and character of clay.
TECHNICAL TOOLKIT Marley provides a comprehensive technical service and a range of online tools to ensure design performance and compliance to the latest British Standards and NHBC technical guidelines. These services include:
- Fixing specifications: marley.co.uk/tilefix
- NBS clauses: marley.co.uk/specrite
- CAD details: marley.co.uk/cad
- BIM models: marley.co.uk/bim
For more information on the recent update to the British Standard for Slating and Tiling (BS 5534) and how it might affect your project, please visit marley.co.uk/BS5534
| Size of Tile |
265mm x 165mm |
| Minimum Pitch |
30° |
| Maximum Pitch |
90° |
| Minimum Headlap |
65mm (roof)
35mm (vertical)
|
| Maximum Gauge |
100mm (roof)
115mm (vertical)
|
| Cover Width |
165mm (nominal) |
| Covering Capacity |
60 tiles/m² at 100mm gauge (roof)
53 tiles/m² at 115mm gauge (vertical)
|
| Weight of Tiling |
64kg/m² (0.63 kN/m²) at 100mm gauge (roof)
56g/m² (0.55 kN/m²) at 115mm gauge (vertical)
|
| Battens Required |
10.0 lin.m/m² at 100mm gauge (roof)
8.7 lin.m/m² at 115mm gauge (vertical)
|
| Batten Size Recommended |
38mm x 25mm for rafters/supports not exceeding 600mm centres |
| Tile Nails |
38mm x 2.65mm |
