A concrete interlocking tile that has instant visual appeal and exceptional strength.
Size of Tile: 420mm x 330mm
Minimum Pitch: 17.5° Smooth (75mm headlap) - 15° Smooth (100mm headlap)
Maximum Pitch: 90°
Minimum Headlap : 75mm (pitch and surface dependent)
Maximum Gauge : 345mm
Cover Width: 298mm (nominal)
Covering Capacity : 9.7 slates/m² at 75mm headlap - 10.5 slates/m² at 100mm headlap
Weight of Tiling: 46kg/m2 (0.45 kN/m2) at 75mm headlap - 49kg/m2 (0.48 kN/m2) at 100mm headlap
Battens Required: 2.9 lin.m/m² at 75mm headlap - 3.1 lin.m/m² at 100mm headlap
Batten Size Recommended : 38 x 25mm for rafters/supports not exceeding 450mm centres - 50 x 25mm for rafters/supports not exceeding 600mm centres
Tile Nails: 70mm x 3.34mm

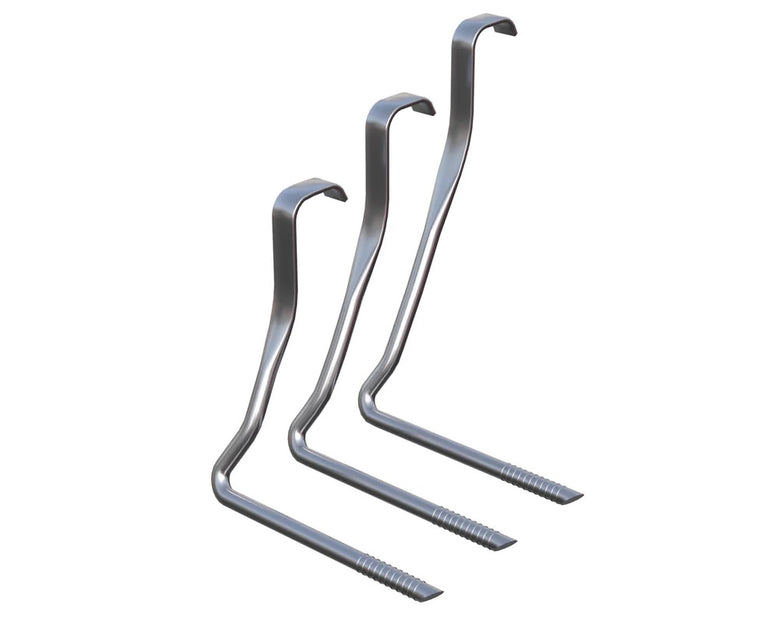

Fixing Clips: Eaves, Verge and Tile Clips
30mm x 2.65mm - 1Kg
30mm x 3.35mm - 1Kg
32mm x 3.00mm - 1Kg
38mm x 2.65mm - 1Kg
38mm x 2.65mm - 4Kg
38mm x 3.35mm - 1Kg
45mm x 3.35mm - 1Kg
50mm x 3.35mm - 1Kg
60mm x 3.35mm - 1Kg
65mm x 3.35mm - 1Kg
70mm x 3.35mm - 1Kg
4.2mtr Lengths (Bundle Of 10)
Box Of 100
4.8mtr Lengths (Bundle Of 10)
