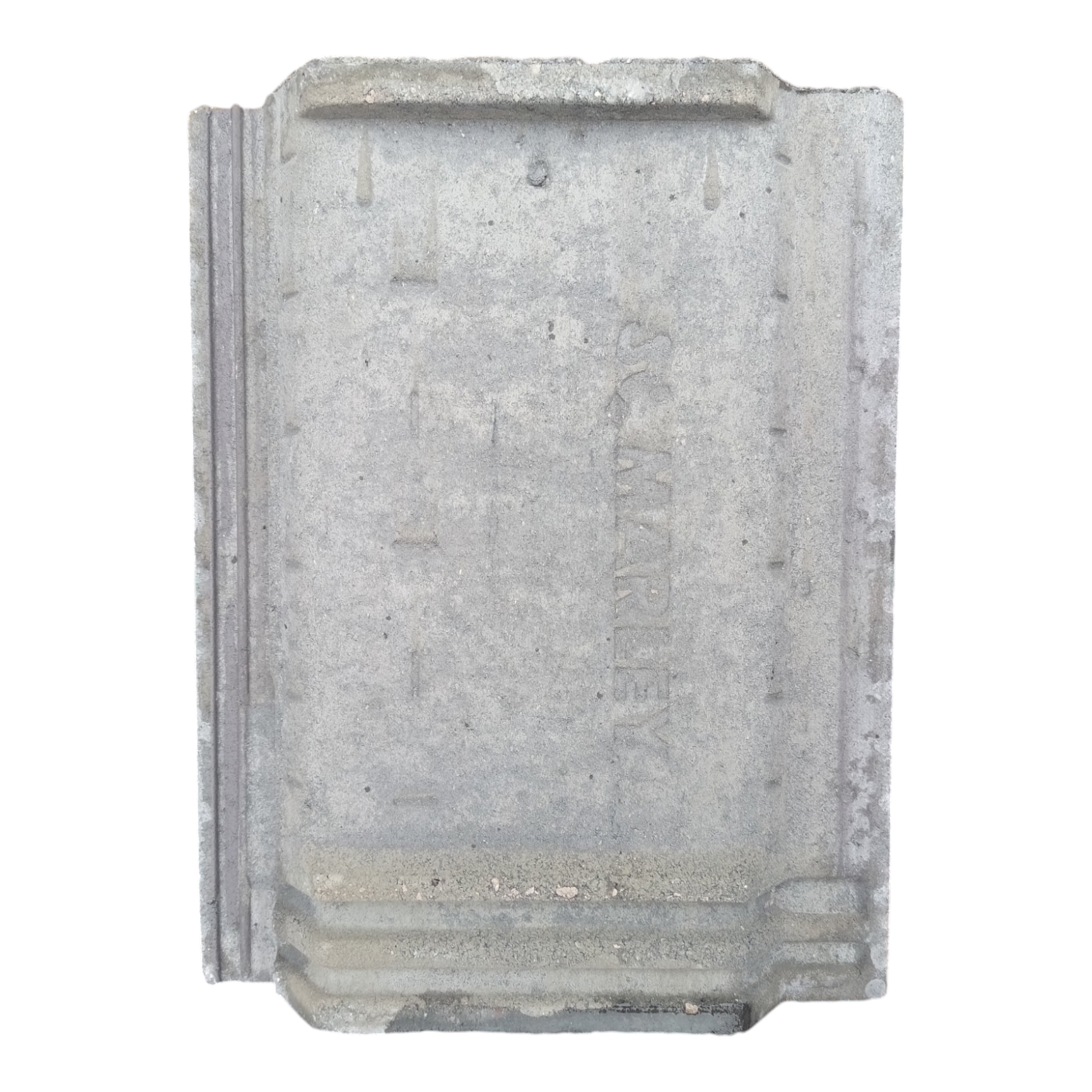

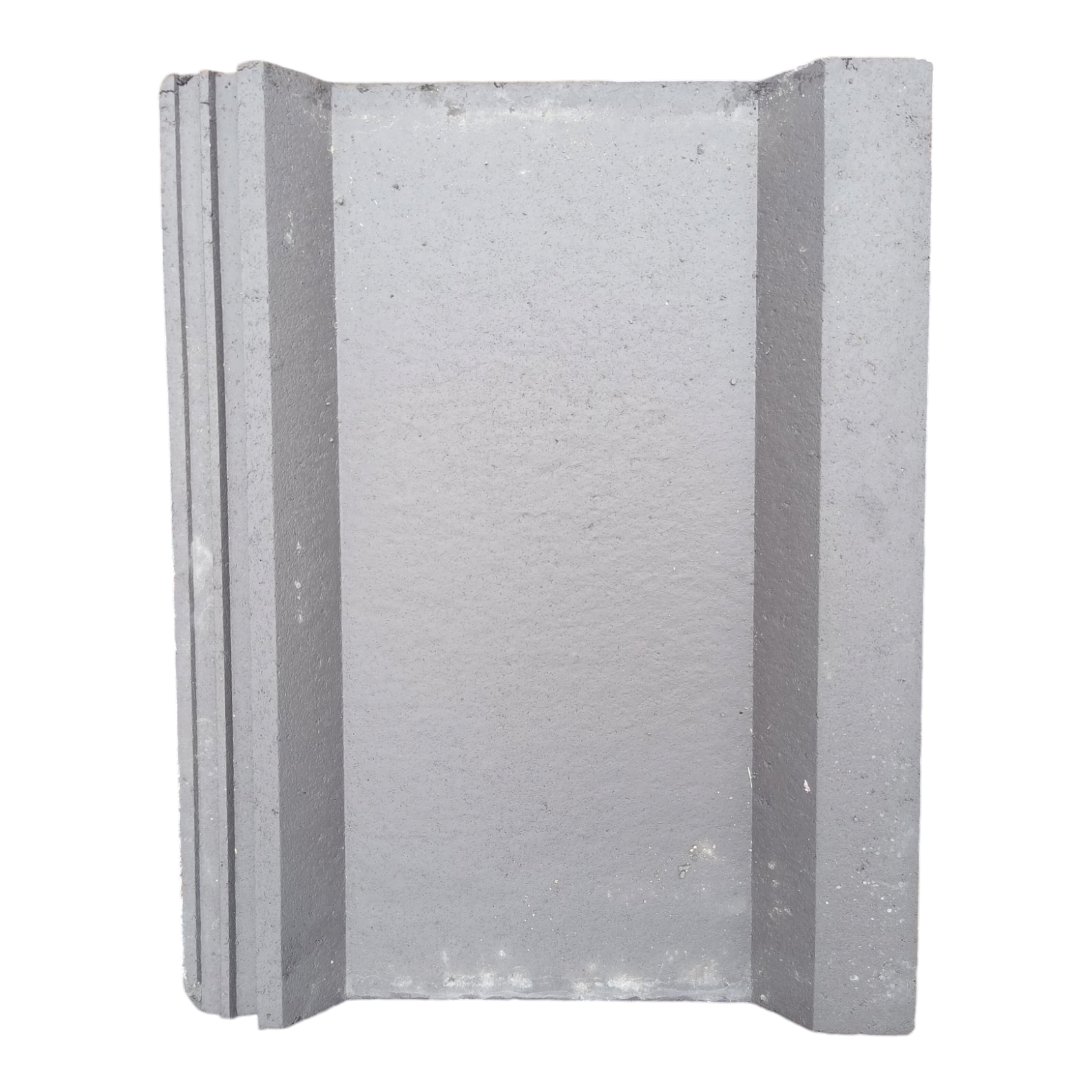

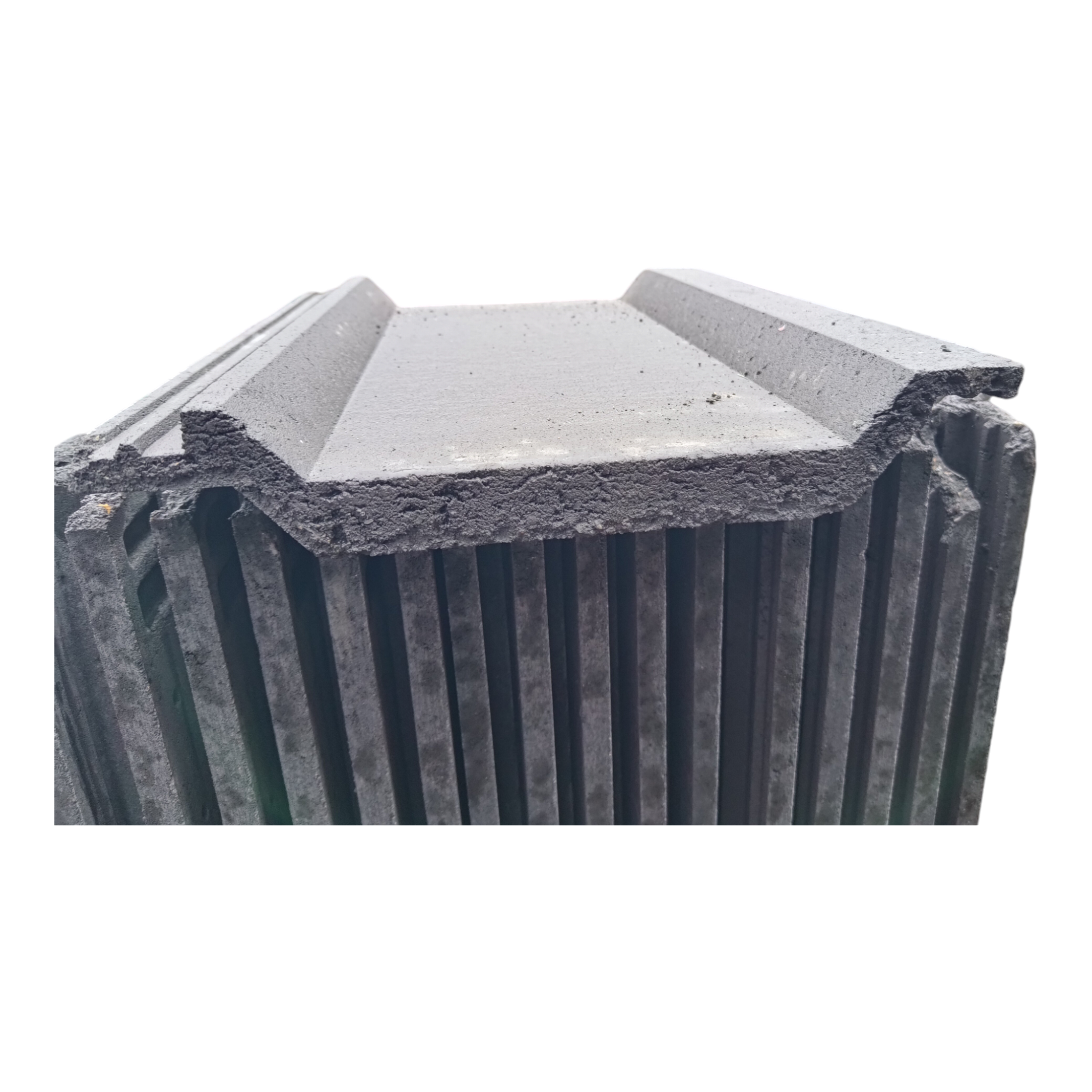

The low profile Wessex is at the forefront of low pitch performance: designed to shed water efficiently with clean, simple lines and a minimalist style.
| Size of Tile
|
420mm x 330mm |
| Minimum Pitch |
15° |
| Maximum Pitch
|
44° |
| Minimum Headlap
|
75mm |
| Maximum Gauge |
345mm |
| Cover Width
|
298mm (nominal) |
| Covering Capacity
|
9.7 tiles/m2 at 75mm headlap
10.5 tiles/m2 at 100mm headlap
|
Weight of Tiling
|
50 kg/m2 (0.49kN/m2) at 75mm headlap
53 kg/m2 (0.52kN/m2) at 100mm headlap
|
| Battens Required |
2.9 lin.m/m2 at 75mm headlap
3.1 lin.m/m2 at 100mm headlap |
| Batten Size Recommended
|
38 x 25mm for rafters/supports not exceeding 450mm centres
50 x 25mm for rafters/supports not exceeding 600mm centres |
| Fixing Clip |
Eaves, Verge and Tile Clips |
| Hanging Length
|
403mm |
