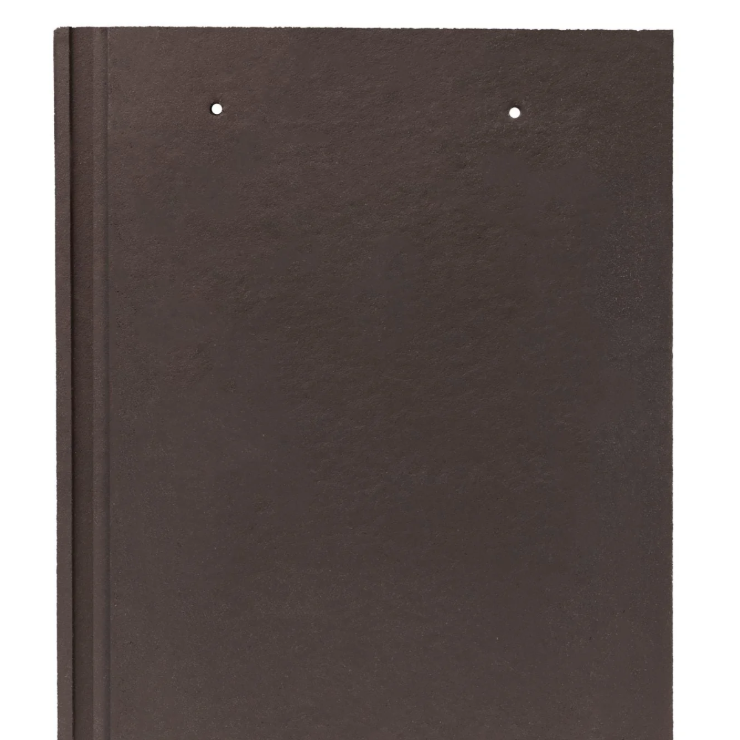

Sandtoft Danum TLE Dark Grey

Achieve a premium, modern slate-like appearance with the strength and reliability of concrete. The Sandtoft Danum TLE (Thin Leading Edge) in Dark Grey is a large-format interlocking concrete roof tile designed to deliver a refined, contemporary look with excellent practical performance.

Featuring a slim leading edge and low profile depth of just 24mm, the Danum TLE closely mimics the appearance of natural slate while offering the durability and consistency of high-quality concrete. A redesigned interlock provides 4mm of shunt for improved fit, and a strengthened locking bar adds extra security against the UK’s variable weather.

Key Benefits

• Premium thin leading-edge aesthetic – Sleek, slate-like appearance with a refined modern finish.
• Low pitch capability – Suitable for pitches as low as 17.5° (at 100mm headlap) or 22.5° (at 75mm headlap).
• Improved interlock – 4mm of shunt for better alignment and weather resistance.
• Enhanced strength – Redesigned locking bar for added durability and security.
• Efficient coverage – Large format means fewer tiles per square metre and faster installation.
• Durable concrete construction – Through-coloured and built to withstand harsh UK weather conditions.
• Complete system – Compatible with dedicated verge units, multi-clips, dry ridge systems, vents and in-roof solar options.

Specifications

• Size: 420 mm x 334 mm
• Cover width: 304 mm
• Profile depth: 24 mm
• Hanging length: 400 mm
• Covering capacity: 9.6 tiles/m² (75mm headlap) / 10.3 tiles/m² (100mm headlap)
• Weight as laid: Approx. 48–51.5 kg/m²
• Batten gauge: 300–345 mm
• Minimum pitch: 17.5° (100mm headlap) / 22.5° (75mm headlap)
• Colour: Dark Grey

Ideal for new builds, extensions, re-roofs and projects seeking a high-quality, low-profile concrete tile with a premium aesthetic. The Danum TLE is part of a complete Sandtoft roofing solution designed for efficient installation and long-term performance.

Always install in accordance with Sandtoft’s technical guidance and BS 5534. For pitches below 22.5°, follow the manufacturer’s low-pitch installation recommendations.
