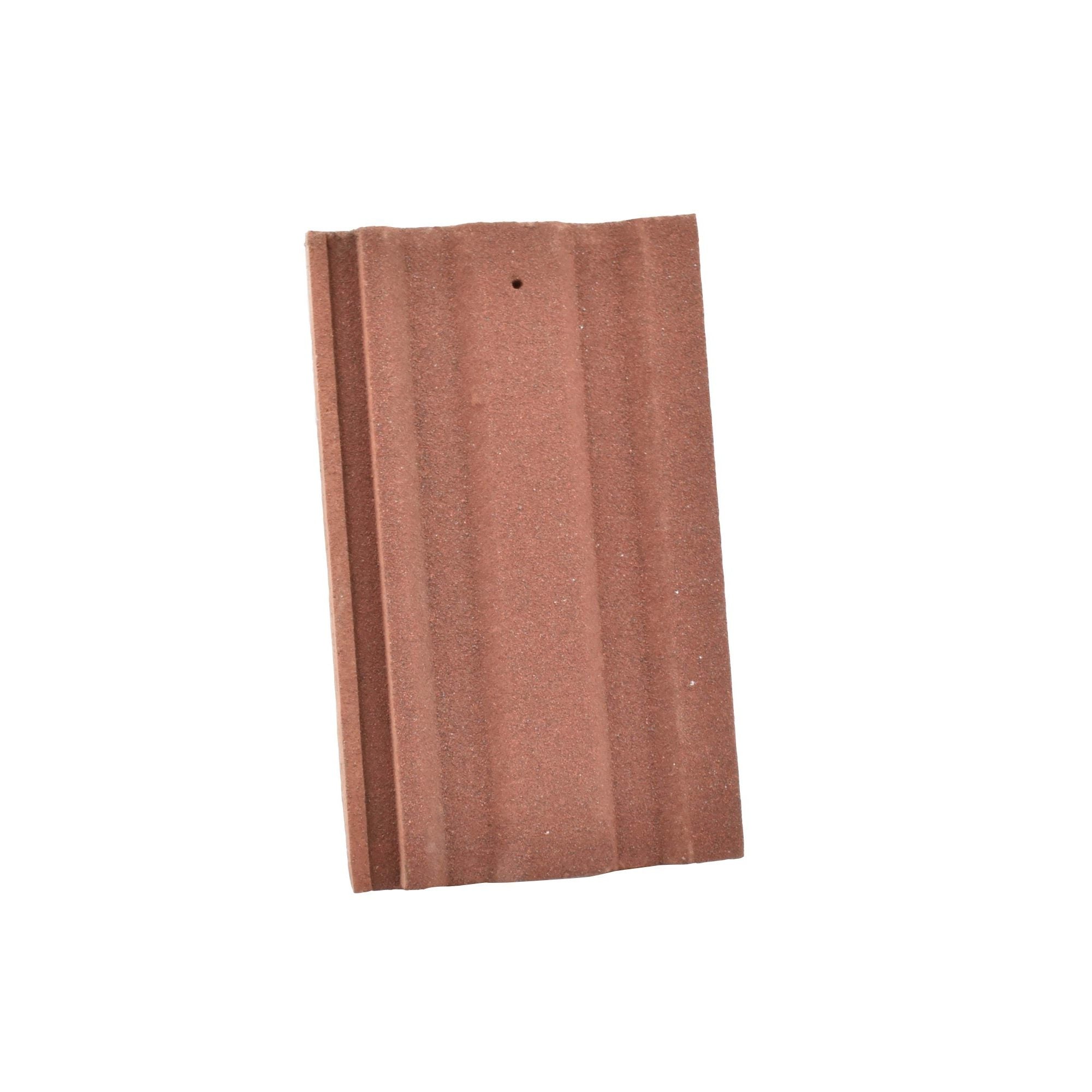

Sandtoft Standard Pattern Mottled Red

Classic interlocking concrete roof tile from Sandtoft (Wienerberger), commonly known as the 15″ x 9″. The Standard Pattern offers a low-profile, square-topped design that is highly popular for both re-roofing and new-build projects. Finished in attractive Mottled Red (sandfaced/granular), it delivers a traditional, weathered appearance with excellent durability and weather performance.

Easy to handle and install thanks to its interlocking design and convenient banded packaging, this tile provides reliable, long-lasting protection on pitched roofs.

Key Benefits

• Classic 15″ x 9″ format – Familiar, versatile profile ideal for renovation and matching existing roofs.
• Mottled Red sandfaced finish – Attractive traditional colour with a textured, natural appearance.
• Low minimum pitch – Suitable from 30° (sandfaced) for reliable performance.
• Easy installation – Interlocking design and smaller format make laying quicker and more efficient.
• High durability – Proven resistance to wind, rain and extreme weather conditions.
• Good covering capacity – Approximately 16.4 tiles per m² (at 75 mm headlap).
• Quality assured – Complies with BS EN 490 & 491 and meets the performance requirements of BS 5534. BRE Green Guide rating A+.
• Sustainable credentials – Contains recycled aggregates and manufactured using green electricity.

Typical Specifications

• Material: Concrete
• Colour/Finish: Mottled Red (sandfaced)
• Size: 380 mm x 230 mm
• Cover width: 200 mm
• Profile depth: 40 mm
• Hanging length: 355 mm
• Minimum roof pitch: 30° (sandfaced)
• Headlap: 75 mm (min) – 120 mm (max)
• Covering capacity: 16.4 tiles/m² (75 mm headlap) / 17.9 tiles/m² (100 mm headlap)
• Weight as laid: Approx. 48–54 kg/m² (depending on headlap)
• Weight per tile: Approx. 2.95–3.0 kg

Ideal for re-roofing projects, extensions and new builds where a traditional low-profile concrete tile in Mottled Red is required. A practical, cost-effective and long-lasting choice from a trusted UK manufacturer.

Always install in accordance with Sandtoft/Wienerberger recommendations and BS 5534. Ensure correct headlap, batten gauge, fixing specification and detailing for the roof pitch and exposure. Compatible fittings, ridges, verges and dry-fix systems are available.
